Electric Foam Unit

$1,544.81

  • Draws from pre-mix solution
  • Powered by 120 VAC electricity
  • 25 ft. (7.6 m) coiled twin-line tubing for convenient use
Category:

Features

  • Draws from pre-mix solution
  • Powered by 120 VAC electricity
  • 25 ft. (7.6 m) coiled twin-line tubing for convenient use
  • 65 degree fan tip for increased coverage

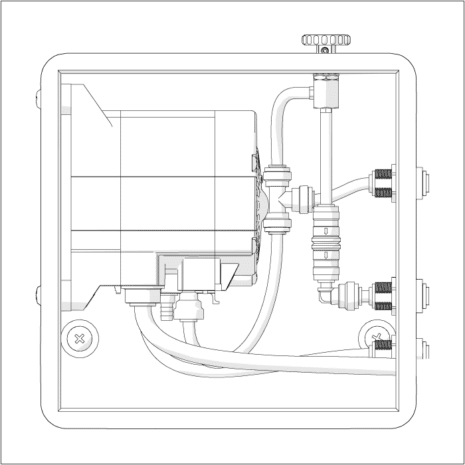

  • On-board compressor
  • Compact design
Power typeElectricity
Chemical pickup typeDraws from pre-mixed solution
Number of products the unit can draw from (and whether it draws simultaneously or one at a time)One product
Suction line length/diameter6 ft. (1.8 m) hose with 1/4 in. (6.4 mm) inside diameter)
Discharge hose diameter/length25 ft. (7.6 m) coiled twin-line tubing, with 1/4 in. (6.4 mm) outside diameter
Discharge wand/tip typePolypropylene trigger handle with 65˚ fan tip
Output distance4-6 feet (1.2-1.8 m)
Output volume6 gal/min (22.7 l/min) of foam
Flow rate*1 gal/min (3.8 l/min)
Pump sealsSantoprene, Viton, or Kalrez

*Dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.

FAQs

Choose a pump seal material that is compatible with the chemicals you will use. Chemical incompatibility can cause accelerated wear and equipment failure that is not covered by a warranty, so it is important to do your research.
